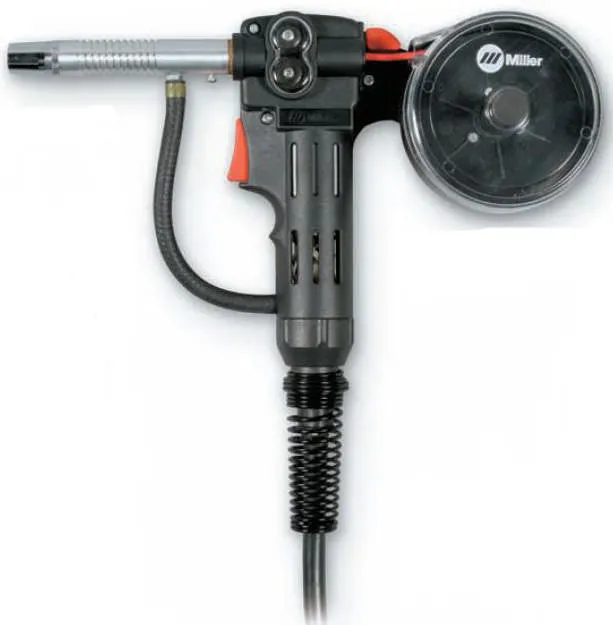

Miller® Spoolmate™ 100 MIG Spool Gun 300371
The 300371 is a reliable and economical direct connect Miller spool gun for Millermatic® 140, 180 and 211 MIG welders and Multimatic™ 200 and 235 multi-process welders. The Spoolmate 100 is excellent for feeding one pound spools of small diameter aluminum MIG welding wire.
Miller 100 Series spool guns provide 12 ft (3.7 m) of cable reach and accessibility for smooth feeding of aluminum wire.
Processes
- MIG (GMAW) for Aluminum Wire Size .030 to .035 in (0.8 to 0.9 mm)
- MIG (GMAW) for Mild and Stainless Steel Wire Size .023 to .035 in (0.6 to 0.9 mm)
Home Hobbyist Applications - Aluminum Fabrication
- Home Maintenance and Repair
- Auto and Marine Repair
Features - Reliable and economical direct connect for Millermatic® 140 and 180 MIG welders after serial #LH210051N, Millermatic® 211 w/Auto-Set, Millermatic® Passport® Plus and Renegade™ 180 Spoolmate™ 100 Series spool guns provide 12 ft (3.7 m) of cable reach and accessibility for smooth feeding of aluminum wire.
- Recessed contact tip for easier welding and prevention of burn back issues.
- Dual V-knurled drive rolls for consistent feeding.
- Adjustable drive roll tension for feeding different types of wire.
- Adjustable pressure lever for easy loading and unloading of wire.
- Heavy-duty drive motor and cast aluminum gearbox.
- 12 ft (3.7 m) cable with heavy-duty strain relief and direct connection.
- Clear spool cover allows the user to see the amount of wire left before it runs out.
- Convenient carrying case holds gun and cable, extra contact tips, nozzle, and wire (wire not included).
NOTE: The Miller 100 spool gun is intended for Home/Hobbyist use ONLY - not production welding.
Comes Complete With - 12 ft. (3.7m) cable
- Custom carrying case
- Extra contact tips and nozzle
- Two FREE 1 lb. spools of Hobart® 4043 .035 diameter aluminum MIG welding wire.
Get two FREE 1 lb. spools of Hobart® MaxalMig® 4043 .035 diameter aluminum MIG welding wire with the purchase of this Miller Spoolmate™ 100 spool gun. While supplies last. (No substitutions allowed.)
Hobart® ER4043 .035 Aluminum MIG Welding Wire - 1# Spool 404303504
1 lb. Spool - Genuine Hobart® ER4043 .030 diameter Aluminum MIG Welding Wire is a general purpose wire that is well-suited for welding 6XXX series aluminum. It is classified as AWS A5.10 ER4043 and is an all-position solid MIG wire with a low melting temperature and excellent corrosion resistance.
Applications
Welding 6xxx alloys
Automotive/motorcycle frames
Sports products - scooters/bicycles
General repair and maintenance
Features
- Moderate strength (28 ksi typical)
- Low melting temperature/high fluidity
- Low welding smut and discoloration
- Low ductility, formability, and lower toughness
- Moderate electrical conductivity and thermal conductivity
- Excellent corrosion resistance
- Low shrinkage rate/reduced distortion
- Low hot cracking sensitivity in most applications
Shielding Gas:
Argon 100%
Argon/Helium mixes for 1 inch thick plate
